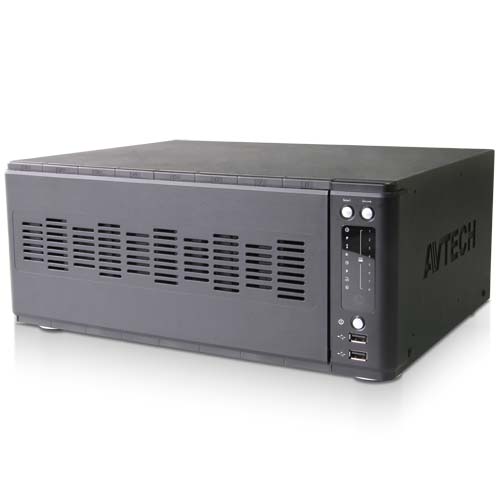

AVH8516
Feature
| Video Input | One LAN port (up to 16 IP cameras) |
|---|---|
| Video Output | HDMI x 2 / VGA x 1 / Composite x 1 |
| Video Output Resolution | HDMI-1: Up to 3840 x 2160 (4K2K) HDMI-2 & VGA: Up to 1920 x 1080 (Full HD) |
| Audio Output | YES |
| Audio Input (Mic In) | YES |
| Alarm I/O | Alarm out only |
| HDD Storage | Eight 6TB hard disks |
| USB Ports | USB 3.0 x 1 / USB 2.0 x 2 |
| IR Remote Control | YES |
| Ethernet | LAN port: 1000Mbps Internet port : 1000Mbps |
| Video Compression Format | H.265 |
| Audio Compression Format | G711 |
| Local / Remote Display Mode | 16CH |
| Local / Remote Playback Mode | 16CH |
| Local Single Channel Playback | YES |
| Record Stream | Dual |
| Recording Mode | Manual / Event / Alarm / Schedule |
| Recording Throughput | Up to 480 IPS @ 2592 x 1944, Up to 300Mbps |
| Pre-alarm Recording | YES |
| Quick Search | Time / Event |
| Event Notification | Push Status / Video Mail / Message Mail |
| Security | Multiple user access levels with password |
| Remote Access | (1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices |
| Max. Online User | 20 |
| Multicast | YES |
| Seamless Recording | YES |
| Smart Search | YES |
| Spot Monitor Setup | Call Monitor / Event Monitor / Live Monitor (HDMI-2 only) |
| Alarm Scenario Setup | YES |
| Alarm Pop-up & Preview | YES |
| Power Source (±10%) | DC19V / 3.42A |
| Operating Temperature | 10℃ ~ 40℃ (50℉~104℉) |
| Operating Humidity | 10% ~ 85% |
| Dimensions (mm) | 358mm(L) x 267mm(W) x 152mm(H) |
| Datasheets | Download |
|---|
