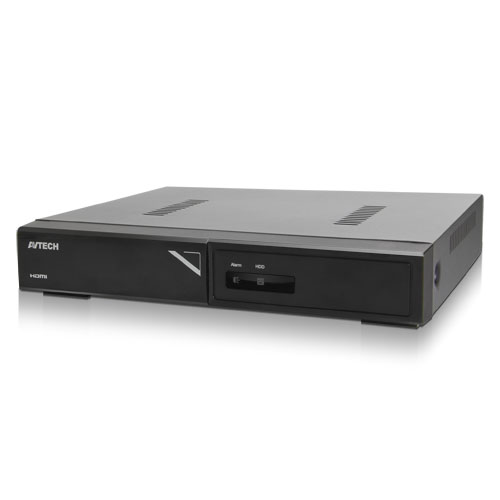

DGD1008
Feature
| Video Compression Format | H.264 |
|---|---|
| Video Signal | IP / Analog HD / TVI / CVI / 960H |
| Video Input | 8 pentabrid channels, within which IP channels are up to 2 channels |
| Video Input Interface | Analog: Composite video signal 1 Vp-p 75Ω BNC IP: Ethernet, 10/100 Base-T |
| Video Output | BNC, VGA, HDMI |
| Video Resolution (Analog) | Live & Playback: 1080P / 720P / QHD / 960H / Frame / Field / CIF Record: 5MP / 4MP / 1080P / 720P / QHD / 960H / Frame / Field / CIF |
| Video Resolution (IP) | Live & Playback: 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 Record: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 |
| Max. Recording Rate | Analog Mode: 120 IPS @ 1280 x 720 ; 60 IPS @ 1920 x 1080 ; 15 IPS @ 2560 x 1440 (4MP) ; 12 IPS @ 2592 x 1944 (5MP) IP Mode: 12 IPS @ 2592 x 1944 (5MP) ; 30 IPS @ 1920 x 1080 |
| Recording Mode | Manual / Timer / Motion / Remote |
| Pre-alarm Recording | YES |
| Playback Channel | 8CH |
| Quick Search | Time / Motion search mode |
| Backup Device | USB 2.0 drive / Network |
| Regular Backup | YES |
| Audio Input | 1 audio input |
| Audio Output | 1 audio output (Mono) |
| Hard Disk Storage | 10TB SATA HDD x 1 |
| SATA Interface | YES |
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL |
| USB Mouse Control | YES |
| Motion Detection Area | 16 × 12 grids per channel |
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection |
| Event Notification | Push Status / FTP / E-Mail |
| Picture Zoom | 2X digital zoom |
| IR Remote Control | YES (IR receiver built-in) |
| Key Lock (Password Protection) | YES |
| User Level | 4 user levels for different access privilege |
| Video Loss Detection | YES |
| RS485 | YES |
| Camera Title | Supports up to 25 letters |
| Video Adjustable | Hue / Saturation / Contrast / Brightness |
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY |
| Daylight Saving | YES |
| Power Source (±10%) | DC12V / 2A |
| Operating Temperature | 10ºC ~ 40ºC (50ºF ~104ºF) |
| Operating Humidity | 10% ~ 85% |
| Dimensions (mm) | 260(W) × 48(H) × 235.7(D) |
| Net Weight (kg) | 1.2 |
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS |
