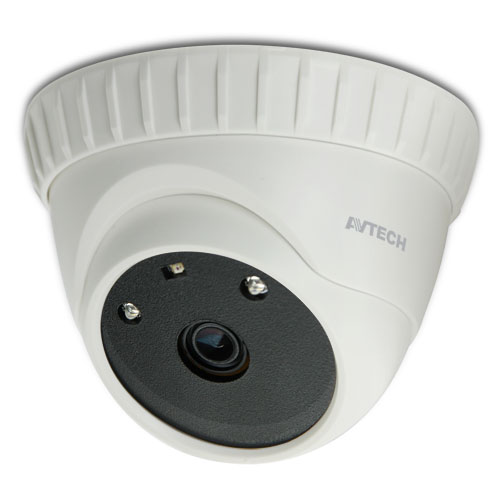

DGC1103A

Feature

  • 1/2.7” CMOS Sensor
  • 1080P video output
  • Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)
  • Day and night 24-hour surveillance with IR effective distance up to 25 meters
  • Camera parameters adjustable when used with AVTECH HD CCTV DVR
  • Pick-up Element 1/ 2.7” CMOS image sensor
    Number of Pixels 1930(H) x 1088(V)
    Video Frame Rate 1080P@30fps / 1080P@25fps
    Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
    S/N Ratio More than 48dB (AGC OFF)
    Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
    Lens f2.8mm / F1.8
    Lens Angle 118° (Horizontal) / 65° (Vertical) / 136° (Diagonal)
    IR LED 2 units
    IR Effective Distance Up to 25 meters
    IR Shift YES
    Day & Night Mode YES
    IRIS Mode AES
    White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
    AGC Auto
    Sharpness YES
    Flickerless 50HZ / 60HZ / OFF
    BLC YES
    Operating Temperature 0℃ ~ 40℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) DC12V / 0.5A
    Current Consumption (±10%) 110.5mA (IR LED OFF); 364mA (IR LED ON)
    Net Weight (kg) 0.145
    Datasheets Download
