AVT1303

Feature

  • 1/2.7” CMOS Sensor with 1080P video output
  • External alarm I/O device connection

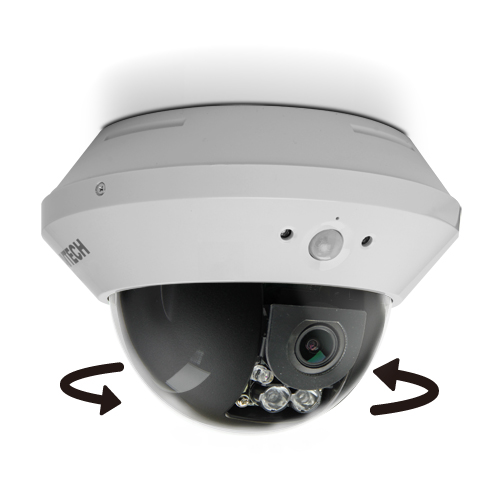

  • With motorized 316-degree pan, the camera can achieve a wide range of view, giving users more comprehensive control over the monitored site.
  • Camera parameters adjustable when used with HD CCTV DVR
  • IR effective distance up to 20 meters for 24-hour surveillance
  • PIR sensor built-in for alarm detection
  • Pick-up Element 1/ 2.7” CMOS image sensor
    Number of Pixels 1930(H) x 1088(V)
    Video Frame Rate 1080P@30fps / 1080P@25fps
    Min. Illumination 1 Lux / F2.0
    S/N Ratio More than 48dB (AGC OFF)
    Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
    Lens f2.8mm / F1.8
    Lens Angle 118° (Horizontal) / 65° (Vertical) / 136° (Diagonal)
    IR LED 2 units
    IR Effective Distance 20 meters
    PIR Sensor Detection Range 76° wide angle with up to 5m long distance at 2.5m height (under 30℃)
    IR Shift YES
    Day & Night Mode YES
    IRIS Mode AES
    White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
    AGC Adjustable
    Sharpness Adjustable
    Flickerless 50HZ / 60HZ / OFF
    BLC Adjustable
    External alarm I/O YES (1 in / 1 out)
    Operating Temperature 0℃ ~ 40℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) DC12V / 1A
    Current Consumption (±10%) 421mA
    Net Weight (kg) 0.65
    Datasheets Download
