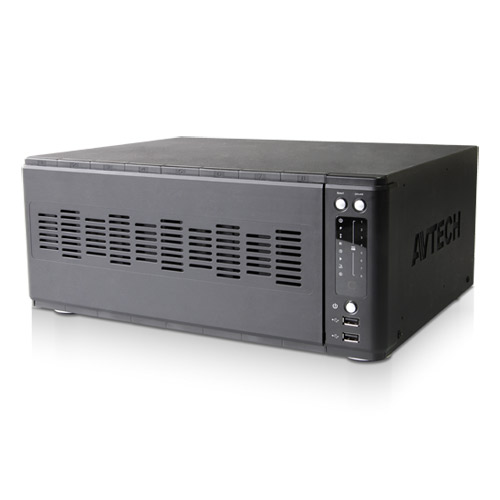

DGD8132

Feature

  • 32 channels DVR supports IP / Analog HD / TVI / CVI / 960H Pentabrid video input.
  • Support 8 HDD up to 10TB
  • Free P2P Cloud EaZy Networking
  • Push Status to send instant notifications for system events, such as video loss or HDD data removal.
  • Video Compression Format H.264
    Video Signal IP / Analog HD / TVI / CVI / 960H
    Video Input 32 pentabrid channels, within which IP channels are up to 2 channels
    Video Input Interface

    Analog: Composite video signal 1 Vp-p 75Ω BNC

    IP: Ethernet, 10/100 Base-T

    Video Output

    BNC (Spot Monitor supported)

    VGA (1080P display / Spot Monitor supported)

    HDMI-1 (4K2K display) / HDMI-2 (1080P display / Spot Monitor supported)

    Video Resolution

    Analog: 1080P / 720P / QHD / 960H / Frame / Field / CIF

    IP: 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240

    Max. Recording Rate

    Analog Mode: 384 IPS @ 1920 x 1080

    IP Mode: Up to 60 IPS @ 1920 x 1080 (2 channels)

    Recording Mode Manual / Timer / Motion / Alarm / Remote
    Pre-alarm Recording YES
    Playback Channel 16CH
    Quick Search Time / Motion / Alarm search mode
    Backup Device USB 3.0 drive / Network
    Regular Backup YES (USB hard drive or FTP)
    Audio Input 16 audio input
    Audio Output 12audio output (Mono)
    RS485 YES
    Alarm input 8
    Alarm Output 1
    Alarm Scenario YES
    Hard Disk Storage 10TB SATA HDD x 8
    SATA Interface YES
    Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
    USB Mouse Control YES
    Motion Detection Area 16 × 12 grids per channel
    Motion Detection Sensitivity 3 adjustable parameters for accurate detection
    Event Notification Push Status / FTP / E-Mail
    Picture Zoom 2X digital zoom
    PTZ Control YES
    Key Lock (Password Protection) YES
    User Level 4 user levels for different access privilege
    Video Loss Detection YES
    Camera Title Supports up to 25 letters
    Video Adjustable Hue / Saturation / Contrast / Brightness
    Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
    Daylight Saving YES
    Power Source (±10%) DC19V / 4.7A
    Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
    Operating Humidity 10% ~ 85%
    Dimensions (mm) 358(L) × 267(W) × 152(H)
    Net Weight (kg) 5.9
    Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
    Network Protocol TCP/IP, PPPOE, DHCP and DDNS
