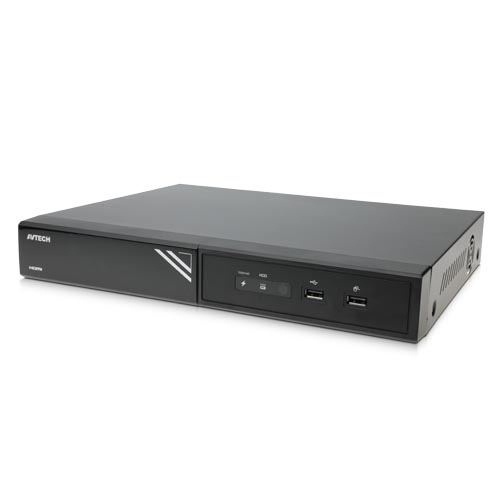

DGD1009

Feature

  • 8 channels DVR supports IP / Analog HD / TVI / CVI / 960H Pentabrid video input.
  • Support 1 HDD up to 10TB or external disk array via eSATA interface
  • H.265 Compression Technology for capacity & bandwith saving
  • Free P2P Cloud EaZy Networking
  • Push Status to send instant notifications for system events, such as video loss or HDD data removal.
  • Video Compression Format H.265
    Video Signal IP / Analog HD / TVI / CVI / 960H
    Video Input 8 pentabrid channels, within which IP channels are up to 2 channels
    Video Input Interface

    Analog: Composite video signal 1 Vp-p 75Ω BNC

    IP: Ethernet, 10/100 Base-T

    Video Output BNC, VGA, HDMI (4K2K display)
    Video Resolution

    Analog: 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF

    IP: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240

    Max. Recording Rate

    Analog Mode: 48 IPS @ 5MP ; 64 IPS @ 4MP ; 120 IPS @ FHD (1080P)

    IP Mode: 30 IPS @ 2592 x 1944 (5MP) ; 50 IPS @ 2048 x 1536 (3MP) ; 60 IPS @ 1920 x 1080

    Recording Mode Manual / Timer / Motion / Remote
    Playback Channel 8CH
    Quick Search Time / Motion / Alarm search mode
    Backup Device USB 2.0 drive / Network
    Regular Backup YES
    Audio Input 4 audio input
    Audio Output 1 audio output (Mono)
    RS485 YES
    Alarm input 4
    Alarm Output 1
    Hard Disk Storage 10TB SATA HDD x 1 or external disk array x 1 connected to the recorder via the eSATA interface
    SATA Interface YES
    eSATA Interface Expandable with a SATA to eSATA cable
    Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
    USB Mouse Control YES
    Motion Detection Area 16 × 12 grids per channel
    Motion Detection Sensitivity 3 adjustable parameters for accurate detection
    Event Notification Push Video / Push Status / FTP / E-Mail
    Event Pop-up & Preview YES
    Scenario Setup YES
    Picture Zoom 2X digital zoom
    PTZ Control YES
    Key Lock (Password Protection) YES
    User Level 4 user levels for different access privilege
    Video Loss Detection YES
    Camera Title Supports up to 25 letters
    Video Adjustable Hue / Saturation / Contrast / Brightness
    Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
    Daylight Saving YES
    Power Source (±10%) DC12V / 2A
    Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
    Operating Humidity 10% ~ 85%
    Dimensions (mm) 260(W) × 48(H) × 235.7(D)
    Net Weight (kg) 1.2
    Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
    Network Protocol TCP/IP, PPPOE, DHCP and DDNS
