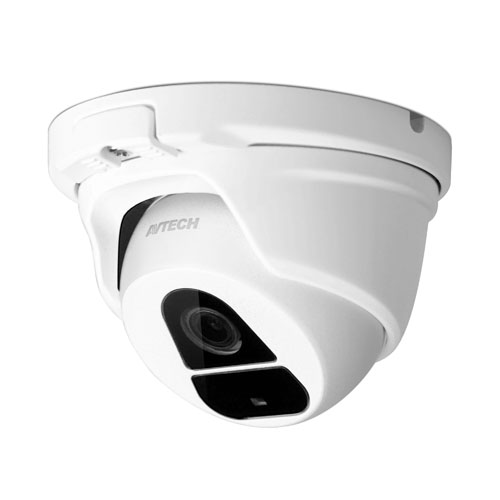

DGC5205T

Feature

  • 1/2.5” CMOS Sensor with 5MP video output
  • Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)
  • Quadbrid video output with TVI, CVI, AHD & CVBS to fulfill different customers' requirements
  • Day and night 24-hour surveillance with IR effective distance up to 50 meters
  • DWDR to increase image recognizability in overexposure and dark areas
  • IP66 for weather-proof application
  • Camera parameters adjustable when used with AVTECH HD CCTV DVR
  • Video Mode TVI, CVI, AHD & CVBS switchable
    Pick-up Element 1/ 2.5” CMOS image sensor
    Number of Pixels 2560(H) x 1920 (V)
    Video Frame Rate 5MP@20fps
    Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
    S/N Ratio More than 48dB (AGC OFF)
    Shutter Speed 1/30 (1/25) sec ~ 1/ 60000 (1/ 50000) sec
    Lens f3.6mm / F1.8
    Lens Angle 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal)
    IR LED 2 units
    IR Effective Distance Up to 50 meters
    IR Shift YES
    Day & Night Mode YES
    Noise Reduction YES
    IRIS Mode AES
    White Balance AUTO
    AGC AUTO
    Sharpness Adjustable
    Flickerless 50HZ / 60HZ / OFF
    DWDR YES
    BLC Adjustable
    IP Rating IP66
    Operating Temperature -20℃ ~ 40℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) DC12V / 0.5A
    Current Consumption (±10%) 100mA (IR lED OFF); 240mA (IR LED ON)
    Net Weight (kg) 0.32
    Datasheets Download
