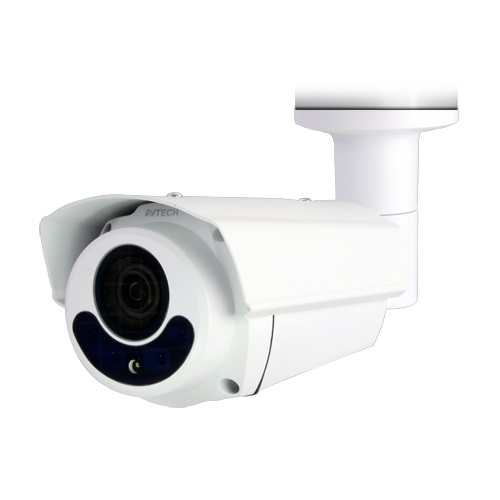

DGC1306

Feature

  • 1/2.7” CMOS sensor with 1080P video output
  • Low light sensitivity of 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
  • Manual adjustment of the brightness of the IR LEDs
  • Day and night 24-hour surveillance with IR effective distance up to 50 meters
  • IP66 for weather-proof application
  • Camera parameters adjustable when used with AVTECH HD CCTV DVR
  • Pick-up Element 1/ 2.7” CMOS image sensor
    Number of Pixels 1930(H) x 1088(V)
    Video Frame Rate 1080P@30fps / 1080P@25fps
    Min. Illumination 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
    S/N Ratio More than 48dB (AGC OFF)
    Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
    Lens motorized f2.8 ~ f8.0mm / F1.6 ~ 2.8
    Lens Angle Wide: 104° (Horizontal) / 56° (Vertical) / 126° (Diagonal)
    Tele: 57° (Horizontal) / 32° (Vertical) / 65° (Diagonal)
    IR LED 4 units
    IR Effective Distance Up to 50 meters
    IR Shift YES
    Day & Night Mode YES
    IRIS Mode AES
    White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
    AGC Adjustable
    Sharpness Adjustable
    Flickerless 50HZ / 60HZ / OFF
    BLC Adjustable
    IR Brightness Adjustment YES
    IP Rating IP66
    Operating Temperature -25℃ ~ 50℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) DC12V / 1A
    Current Consumption (±10%) 220mA (IR LED OFF) / 900mA (IR LED ON)
    Net Weight (kg) 2.4
    Datasheets Download
