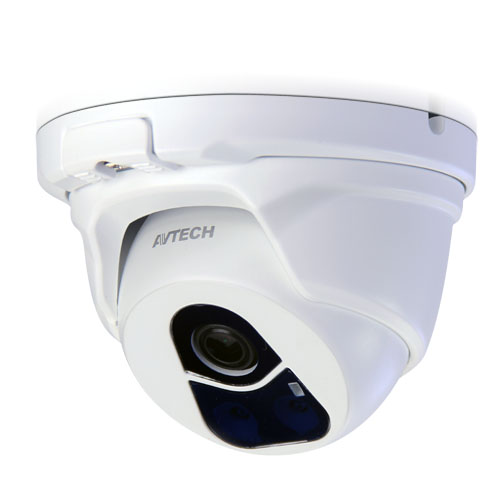

DGC1124

Feature

  • 1/2.9” SONY CMOS sensor
  • 1080P video output
  • Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)
  • Day and night 24-hour surveillance with IR effective distance up to 25 meters
  • DWDR to increase image recognizability in overexposure and dark areas
  • IP66 for weather-proof application
  • Camera parameters adjustable when used with AVTECH HD CCTV DVR
  • Pick-up Element 1/ 2.9” SONY CMOS image sensor
    Number of Pixels 1985(H) x 1100 (V)
    Video Frame Rate 1080P@30fps / 1080P@25fps
    Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
    S/N Ratio More than 48dB (AGC OFF)
    Shutter Speed 1/30 (1/25) sec ~ 1/50000 sec
    Lens f3.6mm / F1.8
    Lens Angle 89° (Horizontal) / 46° (Vertical) / 108° (Diagonal)
    IR LED 2 units
    IR Effective Distance Up to 25 meters
    IR Shift YES
    Day & Night Mode YES
    IRIS Mode AES
    White Balance AUTO / INDOOR / OUTDOOR / MANUAL
    AGC Adjustable
    Sharpness Adjustable
    DWDR YES
    Noise Reduction YES
    IP Rating IP66
    Operating Temperature -20℃ ~ 40℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) DC12V / 0.5A
    Current Consumption (±10%) 90mA (IR LED OFF) / 250mA (IR LED ON)
    Net Weight (kg) 0.32
