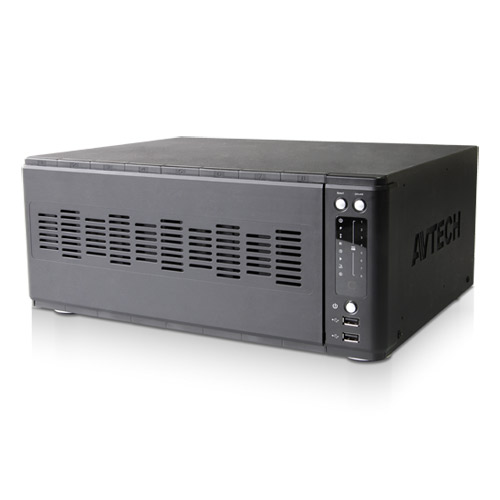

DGH8536L

Feature

  • H.265 Compression Technology
  • Scenario Customization
  • Push Status - Active Event Notification with EagleEyes App
  • 8-bay Storage Capacity
  • Event Pop-up / Preview
  • Video Input One LAN port (up to 36 IP cameras)
    Video Output HDMI / VGA / Composite
    Video Output Resolution Up to 3840 x 2160 (4K2K)
    HDD Storage Eight 10TB hard disks
    USB Ports YES
    Ethernet LAN port: 1000Mbps
    Internet port : 1000Mbps
    Video Compression Format H.265
    Audio Compression Format G711
    Local / Remote Display Mode 36CH
    Local / Remote Playback Mode 16CH
    Local Single Channel Playback YES
    Record Stream Dual
    Recording Mode Manual / Event / Alarm / Schedule
    Recording Throughput Up to 540 IPS @ 8MP (3264 x 2448), Up to 300Mbps
    Pre-alarm Recording YES
    Quick Search Time / Event
    Event Notification Push Status / Video Mail / Message Mail
    Security Multiple user access levels with password
    Remote Access

    (1) Windows Edge, Internet Explorer, Google Chrome, Mozilla Firefox & Safari on Windows & MAC operating systems

    (2) CMS Lite, 32CH CMS software for Windows operating system

    (3) EagleEyes on iOS & Android mobile devices

    Max. Online User 20
    Scenario Setup YES
    Pop-up & Preview YES
    Power Source (±10%) DC19V / 3.42A
    Power Consumption (±10%) 14.25W (No hard disks connected)
    Operating Temperature 10℃ ~ 40℃ (50℉~104℉)
    Operating Humidity 10% ~ 85%
    Dimensions (mm) 358mm(L) x 267mm(W) x 152mm(H)
    Net Weight (kg) 5.8
    Datasheets Download
