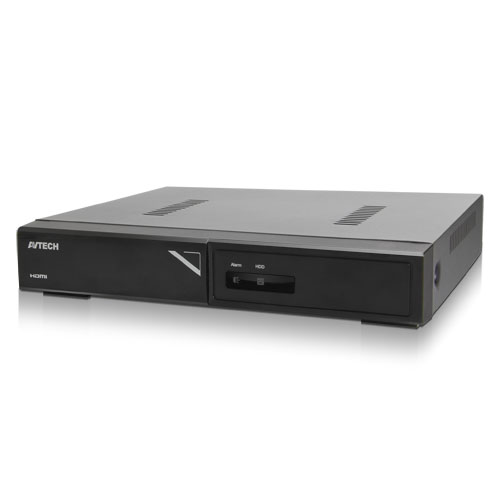

DGH1109

Feature

  • Push Video & Push Status - Active Event Notification with EagleEyes App
  • H.265 Compression Technology
  • Built-in 8 PoE Ports
  • Video Input 8 LAN ports with PoE
    Video Output

    HDMI (4K2K), VGA (1080P), Composite

    Video Output Resolution 3840 x 2160
    Audio 1 in (mic in) / 1 out
    Alarm I/O 4 in / 1 out
    HDD Storage 14TB SATA HDD x1, or a disk array connected to the recorder via the eSATA interface (Optional)
    eSATA Port Expandable with a SATA to eSATA cable (Optional)
    RS-485 Port YES
    USB Ports YES
    IR Remote Control YES
    Ethernet POE 1 ~ 8 (LAN) ports: 10/100 Mbps with PoE
    Internet (WAN) port : 1000Mbps
    Video Compression Format H.265
    Audio Compression Format G711
    Local / Remote Display Mode 9CH
    Local / Remote Playback Mode 9CH
    Local Single Channel Playback YES
    Recording Mode Manual / Event / Alarm / Schedule
    Record Streaming Dual
    Recording Throughput 270 IPS @ 3264 x 2448, up to 120Mbps
    Pre-alarm Recording YES
    Quick Search Time / Event
    Event Notification Push Status / Video Mail / Message Mail
    Security Multiple user access levels with password
    Remote Access

    (1) Windows Edge, Internet Explorer, Chrome & Safari on Windows OS

    (2) CMS Lite, 32CH CMS software for Windows OS

    (3) EagleEyes on iOS & Android mobile devices

    Max. Online User 10
    Multicast YES
    EaZy Networking YES
    Spot Monitor Setup YES (VGA & Composite)
    Free DDNS Service YES
    Power Source (±10%) DC48V / 2.5A
    Operating Temperature 10℃ ~ 40℃ (50℉~104℉)
    Operating Humidity 10% ~ 85%
    Dimensions (mm) 260(L) x 235.7(W) x 48(H)
    Datasheets Download
