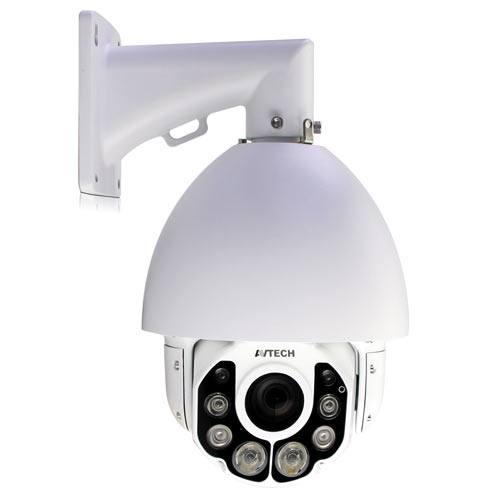

AVM5937

Feature

  • Zoom lens of f4.5 ~ 135mm with 30x optical zoom and auto focus
  • PTZ control for seamless monitoring
  • POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
  • ONVIF standard supported to simplify system integration
  • WDR to increase image recognizability in overexposure and dark areas
  • IR effective range up to 200 meters
  • IP66 for outdoor application
  • Line in / out jacks available for audio transmission
  • MicroSD card support (up to 64GB) for video storage
  • Compression Format H.265 / H.264 / MJPEG
    Video Resolution 2592x1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
    Frame Rate 30/25 fps
    Multiple Video Streaming 4 (H.265 / H.264 / MJPEG)
    Bitrate Control SVBR control (VBR + Max bitrate)
    Image Sensor 1/2.9" SONY CMOS image sensor
    Min Illumination 0.1 Lux / F1.6 (Wide)~F4.4 (Tele), 0 Lux (IR LED ON)
    Shutter Speed 1 / 60 (1/50) to 1 / 100,000 sec.
    S/N Ratio More than 48dB (AGC off)
    Lens f4.5 ~ 135mm / F1.6 (Wide) ~ 4.4(Tele), auto focus
    Viewing Angle

    1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal)

    30X: 2.5° (Horizontal) / 1.4° (Vertical) / 2.8° (Diagonal)

    IR LED 8 Units
    IR Effective Distance Default: Up to 200 meters / IR Turbo mode: More than 200 meters
    IR Shift YES
    Smart Light Control YES
    White Balance Auto / 2500K / 3200K / 4200K / 5800K / 9500K
    AGC YES
    IRIS Mode YES
    Sharpness YES
    WDR YES
    ONVIF Compatible YES (Profile S)
    POE YES (802.3at)
    LAN Speed 10/100 Based-T Ethernet
    External Alarm I/O YES (1 input / 1 output)
    RAM 20MB
    MicroSD Card Slot YES (up to 64GB)
    RS-485 YES
    Weather-proof IP66
    Operating Temperature -25℃ ~ 50℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) AC 24V / DC19V
    Power Consumption (±10%) PoE & PoN: 20.27W; DC adapter: 19.95W
    Net Weight (kg) 6.9
    Datasheets Download
