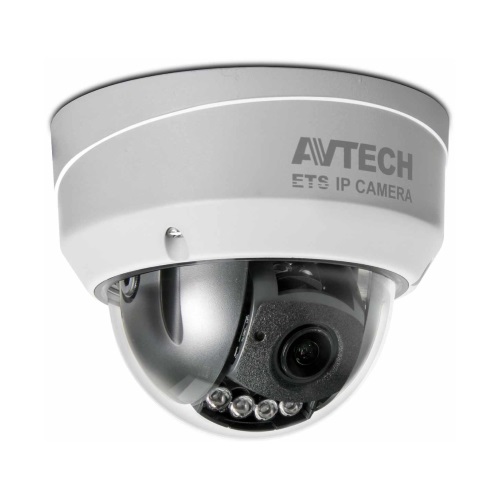

AVM5447

Feature

  • POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
  • Equipped with a motorized lens of f2.8 ~ 12mm
  • 3-axis mechanism for flexible ceiling and wall-mount installation
  • ONVIF standard supported to simplify system integration
  • DWDR to increase image recognizability in overexposure and dark areas
  • IR effective range up to 35 meters for night surveillance
  • Network Compression H.265 / H.264 / MJPEG
    Video Resolution 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
    Frame Rate 30/25 IPS
    Multiple Video Streaming 4 (H.265 / H.264 / MJPEG)
    Image Sensor 1/2.9" SONY CMOS image sensor
    Min Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
    Shutter Speed 1/10,000 ~ 1/15 (Slow shutter)
    S/N Ratio More than 48dB (AGC off)
    Lens Motorized f2.8 ~ 12mm / F1.4 ~ F2.8
    Viewing Angle Wide: 103° (Horizontal) / 54° (Vertical) / 12° (Diagonal)
    Tele: 31° (Horizontal) / 17° (Vertical) / 36° (Diagonal)
    IR LED 4 Units
    IR Effective Distance Up to 35 meters
    IR Shift YES
    Smart Light Control YES
    White Balance ATW
    AGC Auto
    IRIS Mode AES
    DWDR YES
    POE YES (IEEE 802.3af)
    External Alarm I/O YES (1 input / 1 output)
    Micro SD Card Slot YES
    RAM 20MB
    IP Rating IP66
    Vandal-proof Rating IK10
    Operating Temperature -25℃ ~ 50℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) 12V / 1A
    Current Consumption (±10%) 250mA (IR LED OFF); 550mA (IR LED ON)
    Power Consumption (±10%) 8.5W (PoE / PoN) ; 6.5W (DC Adapter)
    Net Weight (kg) 1.5
    Datasheets Download
