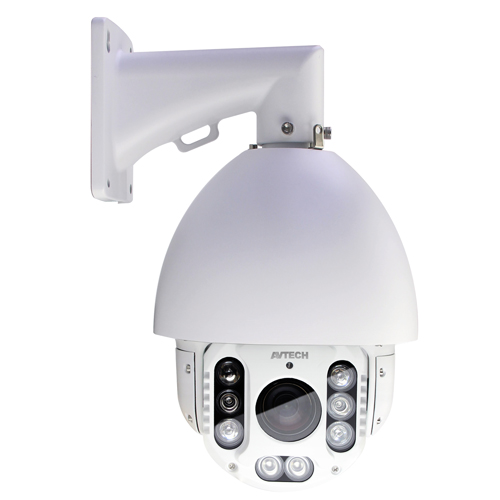

AVM2592L

Feature

  • Zoom lens of f4.7 ~ 94mm with 20x optical zoom and auto focus
  • PTZ control for seamless monitoring
  • POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
  • ONVIF standard supported to simplify system integration
  • DWDR to increase image recognizability in overexposure and dark areas
  • IR effective range up to 200 meters
  • IP66 for outdoor application
  • Line in / out jacks available for audio transmission
  • MicroSD card support (up to 128GB) for video storage
  • Compression Format H.264 (Main Profile) / MJPEG
    Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
    Frame Rate 30fps
    Multiple Video Streaming 4 (H.264 /MJPEG)
    Bitrate Control SVBR control (VBR + Max bitrate)
    Image Sensor 1/2.9" CMOS image sensor
    Min Illumination 0.1 Lux / F1.6(Wide)~F3.5(Tele), 0 Lux (IR LED ON)
    Shutter Speed 1 / 60 (1/50) to 1 / 100,000 sec.
    S/N Ratio More than 48dB (AGC off)
    Lens f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele), auto focus
    Viewing Angle 1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal)
    20X: 3.4° (Horizontal) / 1.9° (Vertical) / 3.8° (Diagonal)
    IR LED 8 Units
    IR Effective Distance Default: Up to 200 meters / IR Turbo mode: More than 200 meters
    IR Shift YES
    White Balance Auto / 2500K / 3200K / 4200K / 5800K / 9500K
    AGC YES
    IRIS Mode YES
    Sharpness YES
    DWDR YES
    ONVIF Compatible YES (Profile S)
    POE YES (802.3at)
    LAN Speed 10/100 Based-T Ethernet
    External Alarm I/O YES (1 input / 1 output)
    RAM 20MB
    MicroSD Card Slot YES (up to 128GB)
    RS-485 YES
    Weather-proof IP66
    Operating Temperature -25℃ ~ 50℃
    Operating Humidity 90% or less relative humidity
    Power Source (±10%) AC 24V / DC19V
    Current Consumption (±10%) DC19V / 1.3A
    Power Consumption (±10%) PoE / PoN: 25.9W; DC Adapter: 25W
    Net Weight (kg) 6.9
